JDJ(J)2-35, JD(X)N2-35 35kV Voltage Transformer Oil Immersed Voltage Transformer
JDJ(J)2-35, JD(X)N2-35 35kV Voltage Transformer Oil Immersed Voltage Transformer
Description
JDJ(J)2-35, JD(X)N2-35 35kV Voltage Transformer Oil Immersed Voltage Transformer
General Introduction
The voltage transformer of the type JDJ(J)2-35 is single phase and oil-immersed
product. It is used for electric energy metering, voltage control and relay protection
in the electric system of rated frequency 50Hz or 60Hz and rated voltage 35kV.
Model and Meaning
Structure Features
This voltage transformer has three poles and the iron core is made of silicon steel
sheet. The body is fixed on the box cover by clamps. There have the primary and
secondary bushing also on the box cover. The oil box is made of steel sheet by
welding, there are earth studs and oil drain plug on lower part of box wall, and four
mounting holes in the bottom.

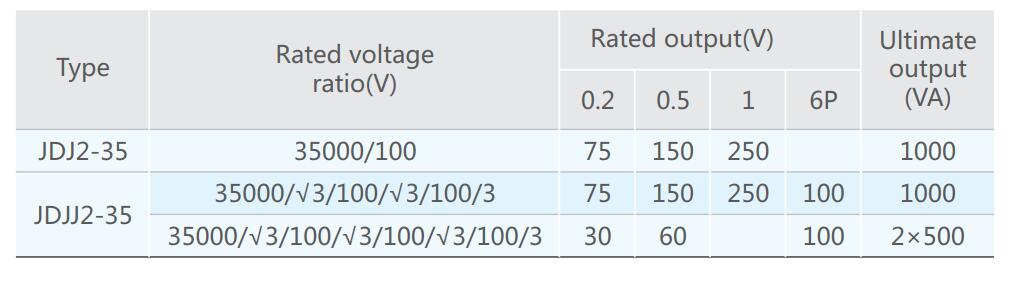

Technical Specification
Outline and Mounting Dimensions
